Titan Deck Foot Anchor

<p>The Deck Foot Anchor gives you strength and security similar to a poured concrete footing without the labor, time and cost. Quickly and easily install ground anchored footings for freestanding decks, pergolas, sheds, ramps and more - in minutes!<br></p><p>The Deck Foot Anchor™ stands up to the frost. It does not heave up from the ground like a fence post that is literally popped out of the ground a little bit each year. The Deck Foot Anchor ™ remains anchored to the ground and moves with the soil as it expands up or settles down during freeze or thaw cycles. Use only with freestanding decks, unless the soil does not freeze in your area.<br></p><p>Independent compression load tested to a minimum of 19,000 lbs.! This is far more than your soil will ever support. Also works for&nbsp;Low or High Elevation Decks. Ground Level: You can build your deck with joists as low as 2 in. - 3 in. above grade if you wish.&nbsp;</p><p>Securely anchored: Ready for high winds. The Titan Deck Foot Anchor™ holds your footings securely to the ground. For maximum uplift resistance, consider using the 36 in. auger.</p><p>Designed for freestanding structures such as decks, sheds, pergolas, and gazebos.</p><p></p>Installation<p></p><p>&nbsp;Print Installation Instructions</p>

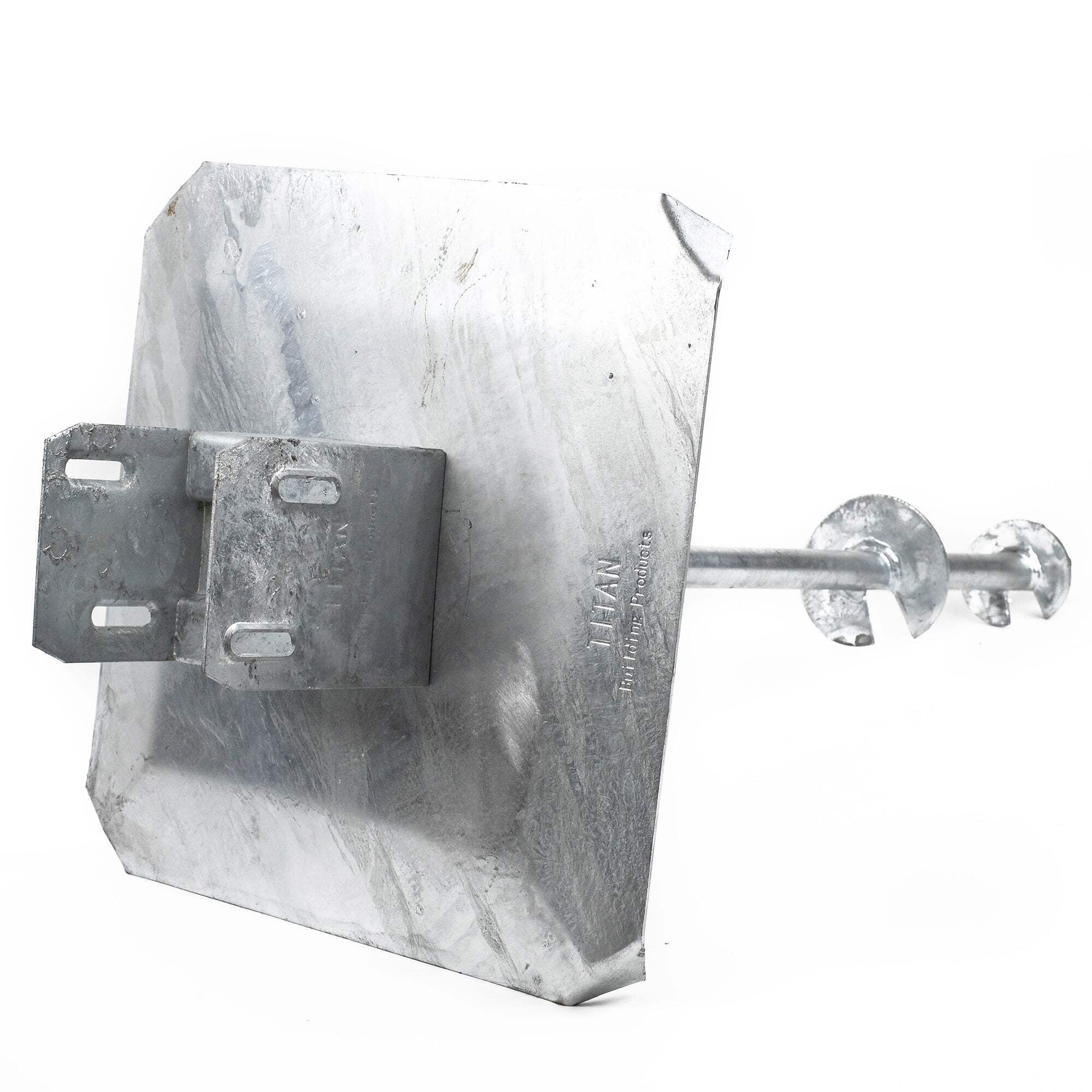

Titan Deck Foot AnchorSpecifications

• Model

VPATIDF442600, VPATIDF442900, VPATIDF662600, VPAVPATIDF662900

• Color/Coating

Hot dip zinc galvanized

• Material

Formed/welded sheet steel

• Dimensions

Post Size: nominal 4x4 (3.5" x 3.5") (89mm x 89mm), Nominal 6x6 (5.5" x 5.5") (100mm x 100mm)
Plate: 12.5" x 12.5" x 1/8" (310mm x 311mm x 311mm)
Auger: 24" (600mm), 36" (900mm)

• Weight

VPATIDF44600 - 9 lbs (4 kg), TIDF44900 - 9.5 lbs (4.3 kg), VPATIDF66600 - 9.5 lbs (4.3 kg), TIDF66900 - 10 lbs (4.5 kg)

• Fasteners

Recommended: (4) 1/4" x 3" hex head lag screws Sold Separately

• Recommended Uses

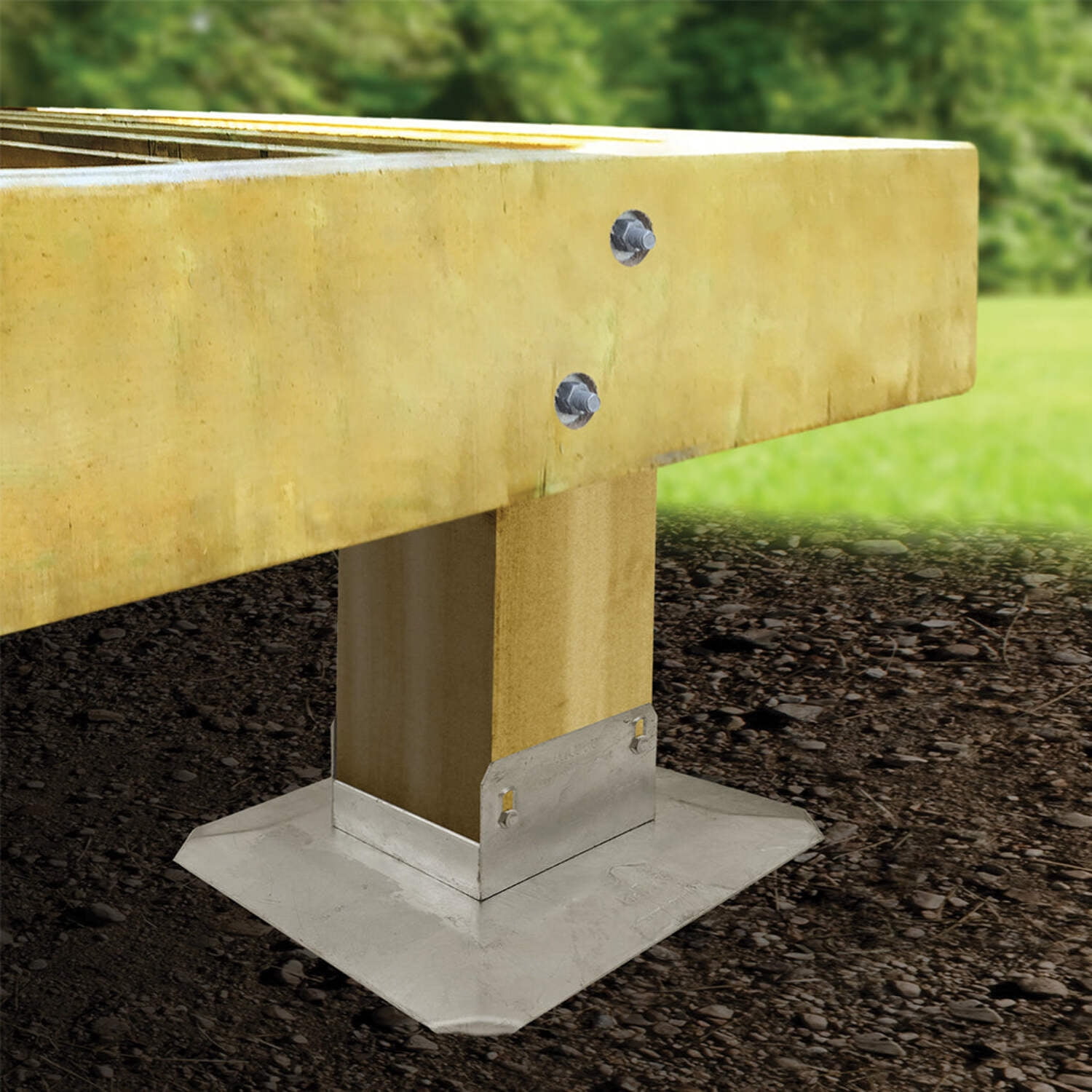

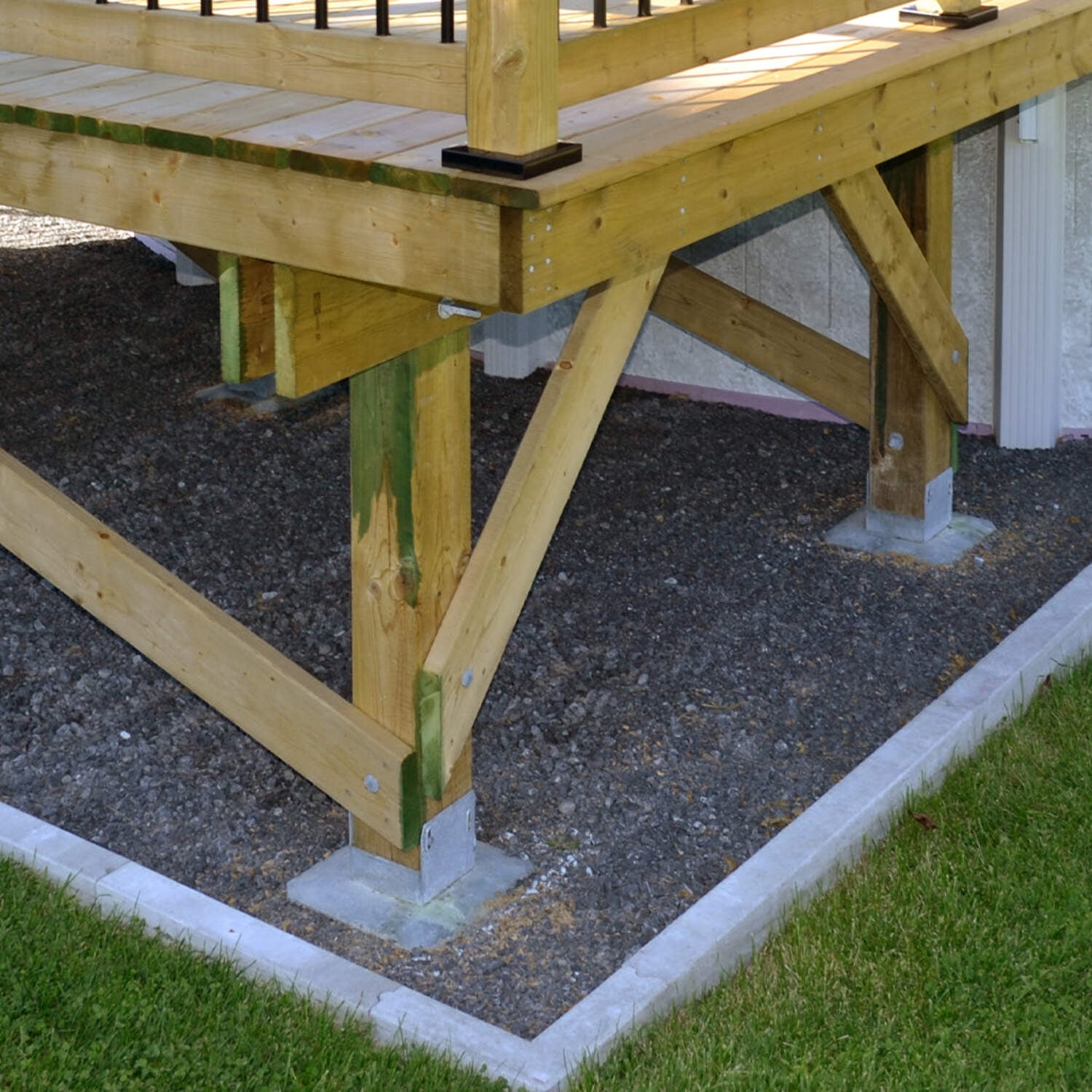

Designed for footings for decks that are not attached to the ledger of a house. Keep deck ¾" to 1" away from foundation or siding to allow for settling or seasonal vertical movement. Decks can be built as low as 2" from underside of beam to grade and as high as 6' from top of deck surface to grade. Posts should be braced to beams and joists for any deck 18" or higher.OtherPrepare site by removing sod and laying down 3" of ½" crushed stone and tamp down to compress. Crushed stone compresses well and is porous so water flows away from plate without eroding loose soil in heavy rain. Do not use for free standing posts such as fence posts. Not designed to provide significant resistance from lateral forces at top of post.

Hardware anchor type	Sleeve
Rec. use	Deck
Working load limit	19000 lb
Installation type	In-Ground
Material	Formed, welded sheet steel
Finish	Hot dip zinc galvanized
Brand	Titan
Features	Easy Installation
Color	Hot dip zinc galvanized
Count	1
Height	8"
Model	VPATIDF442600, VPATIDF442900, VPATIDF662600, VPAVPATIDF662900
